Side Dump Semi Trailer
- Size: 11000*2500*3500 (mm)
- Side board height: optional
- Payload: 30Ton-100Ton volume optional
- Main beam: Heavy duty I beam.
- Side wall: 3mm
- Floor: 4mm
- Cylinders: 5+1
- Axles: 3 * 13ton capacity (Brand optional)
- Suspension: Mechanical suspension (Air suspension optional)
- Overview
- Recommended Products

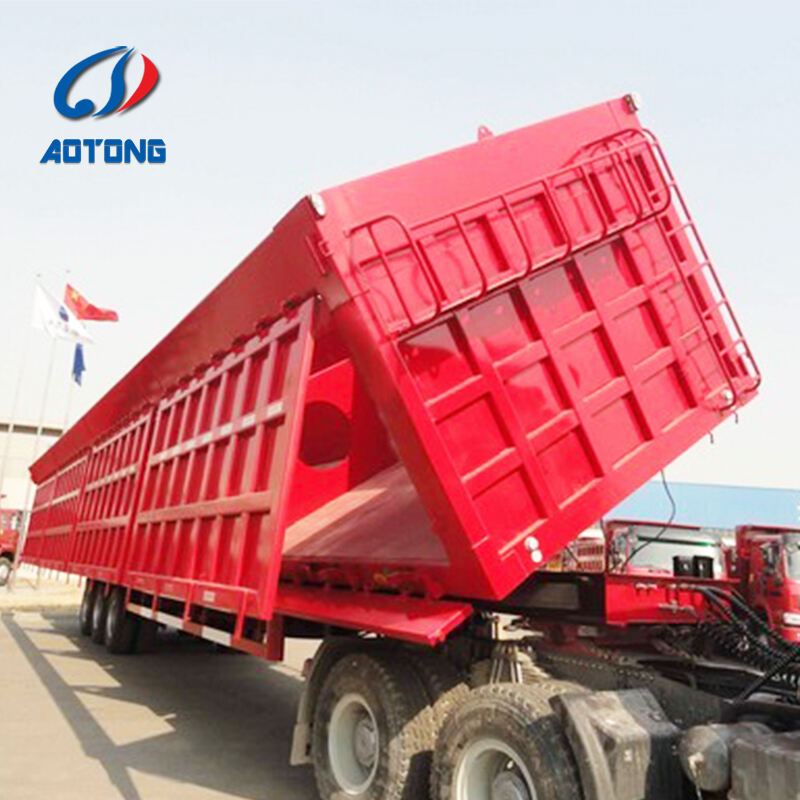

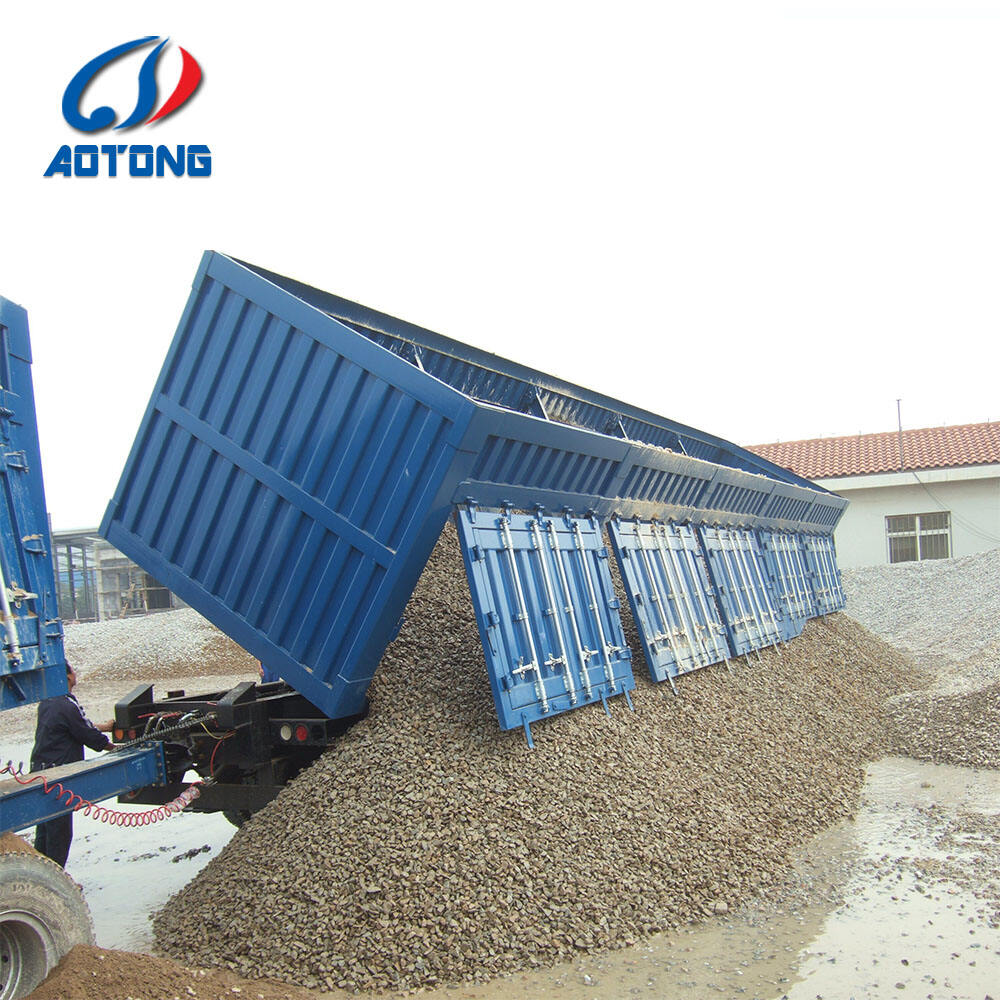

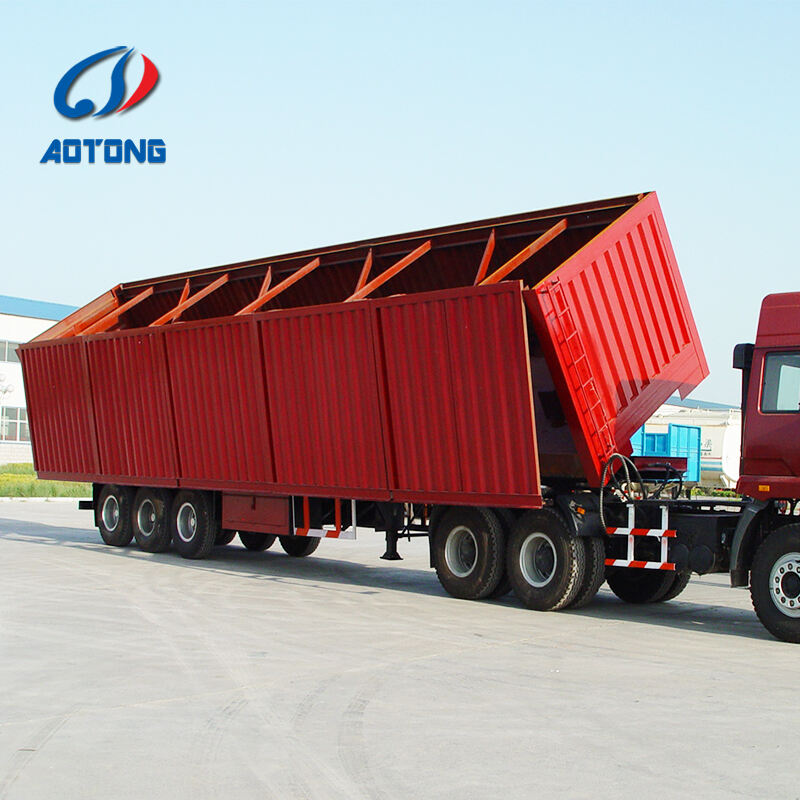

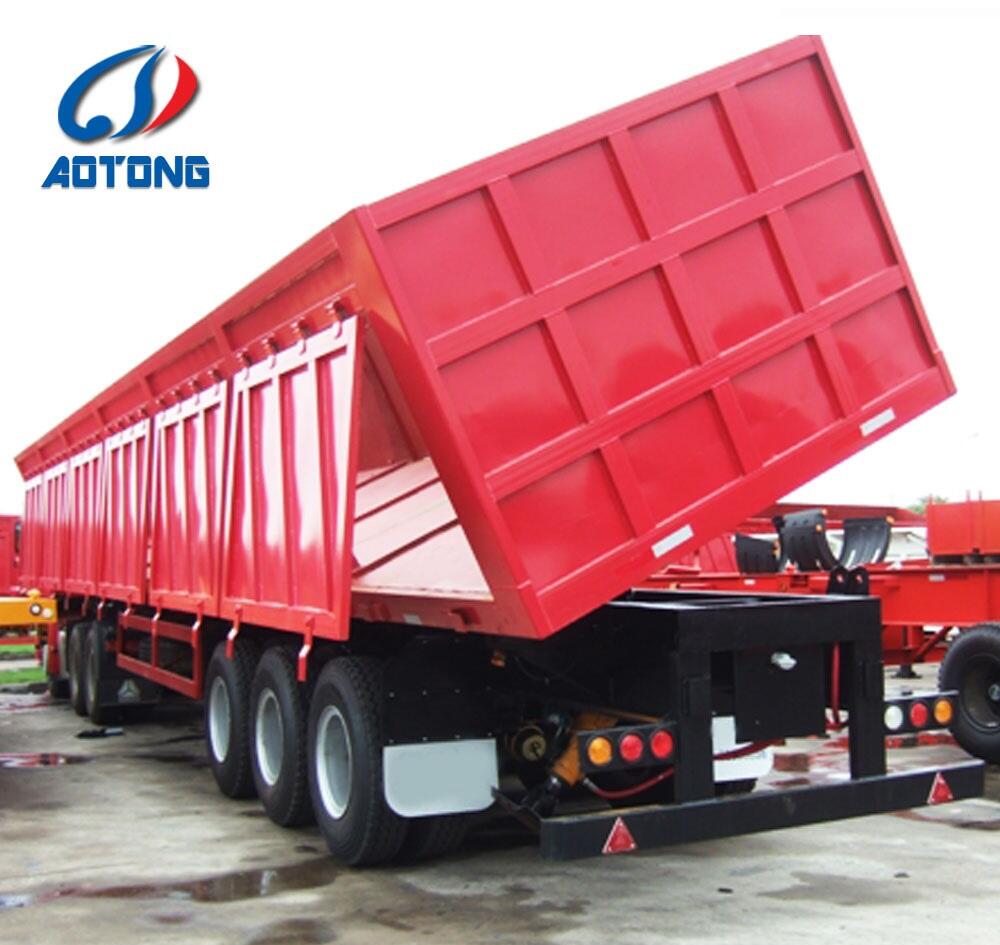

Side dump semi-trailer is a specialized heavy hauler designed for rapid unloading of bulk materials by tilting laterally. Its unique hydraulic system allows the trailer body to lift from one side, depositing cargo along the length of the trailer - making it ideal for precise material placement in construction and mining applications.
Key Features & Technical Specifications
1. Structural Design
Monocoque Body Construction:
High-strength steel (often Hardox® 450)
Reinforced crossmembers for torsion resistance
Curved or V-shaped floor for complete material discharge
Hydraulic System:
Dual 8"-10" bore cylinders (100-150 PSI operating pressure)
30-45 second dump cycle time
Auto-leveling safety valves
2. Capacity & Dimensions
Specification |
Standard |
Heavy-Duty |
Length |
28-40ft |
40-53ft |
Width |
96-102in |
102-120in* |
Payload Capacity |
25-30t |
35-45t |
Volume |
18-24yd³ |
25-35yd³ |
3. Chassis Configuration
Axle Systems:
Tandem (46k GVWR)
Tridem (65-80k GVWR)
Self-steering axles available
Suspension:
Heavy-duty walking beam (off-road)
Air-ride (highway)
Hendrickson HAS/SMEY designs
4. Discharge Characteristics
50-60° dump angle
Controlled flow gates (optional)
8-12ft discharge width
Minimal material retention (<2%)
Operational Advantages
✓ Precision Placement: Material spreads along trailer length
✓ Fast Cycle Times: 2-3x faster than rear dumps
✓ Stable Operation: Lower center of gravity during dumping
✓ Road-Friendly: Better weight distribution than end-dumps
Common Applications
Road Construction: Base aggregate placement
Rail Projects: Ballast distribution
Mining Operations: Overburden removal
Agricultural Use: Fertilizer/feed distribution
Specifications and Parameters:
Size |
11000*2500*3500 (mm) |
Side board height |
optional |
Payload |
30Ton-100Ton volume optional |
Main beam |
Heavy duty I beam. |
Side wall |
3mm |
Floor |
4mm |
Cylinders |
5+1 |
Axles |
3 * 13ton capacity (Brand optional) |
Suspension |
Mechanical suspension (Air suspension optional) |
Leaf spring |
10pcs |
Tire |
12R22.5 12pcs (Other size optional) |
Rim |
9.00-22.5 12pcs (Other size optional) |
Kin pin |
2’’/3.5’’ bolt type |
Landing gear |
28 Ton two speed |
Braking system |
Double air chamber ,brake valve,40L air tanks ;ABS optional |
Electrical |
LED light , 7 ways ,24V |
Painting |
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
Frequently Asked Questions (FAQ):
Q: Does your company has your own factory?
A: Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing various trailers in Shan Dong,China.
Q: What is your minimum order quantity?
A: One unit
Q: Can you satisfy my special requirement?
A: Definitely!We can make the trailers based on your requirement.
Q: What logistics methods can you use for transportation?
A: We can use various transportation tools to transport construction machinery.
(1) Our main mode of transportation is that the machine will be shipped by container or ro-ro/bulk.
(2) For China's inland neighboring countries, we can ship the machine by road or rail.
(3) For urgently needed spare parts, we can ship by DHL, TNT, UPS or FEDEX.
Q: Do you have any other services?
A: Our company's aim is to give you satisfaction, our services include the best price, shipping and packaging, booking the cargo hold, and helping you buy parts.
