Detachable Gooseneck Semi Trailer

- Size: 16000*(2500-3000)*800 (mm)
- Payload: 40Ton-100Ton
- Power pack: Engine for hydraulic cylinders
- Main beam: Heavy duty I beam.
- Side beam: 250mm I beam
- Plate: 4mm checked plate
- Ladder: Small ladder frond loading
- Axles: 3 * 13ton capacity (Brand optional)
- Suspension: Mechanical suspension (Air suspension optional)

Overview
Recommended Products

Detachable Gooseneck is a heavy-duty semi-trailer designed for transporting oversized, overweight, and specialized loads (e.g., construction equipment, industrial machinery, and military vehicles). Its unique detachable front section allows for easy loading and unloading from the rear or side, making it ideal for cargo that cannot be lifted conventionally.

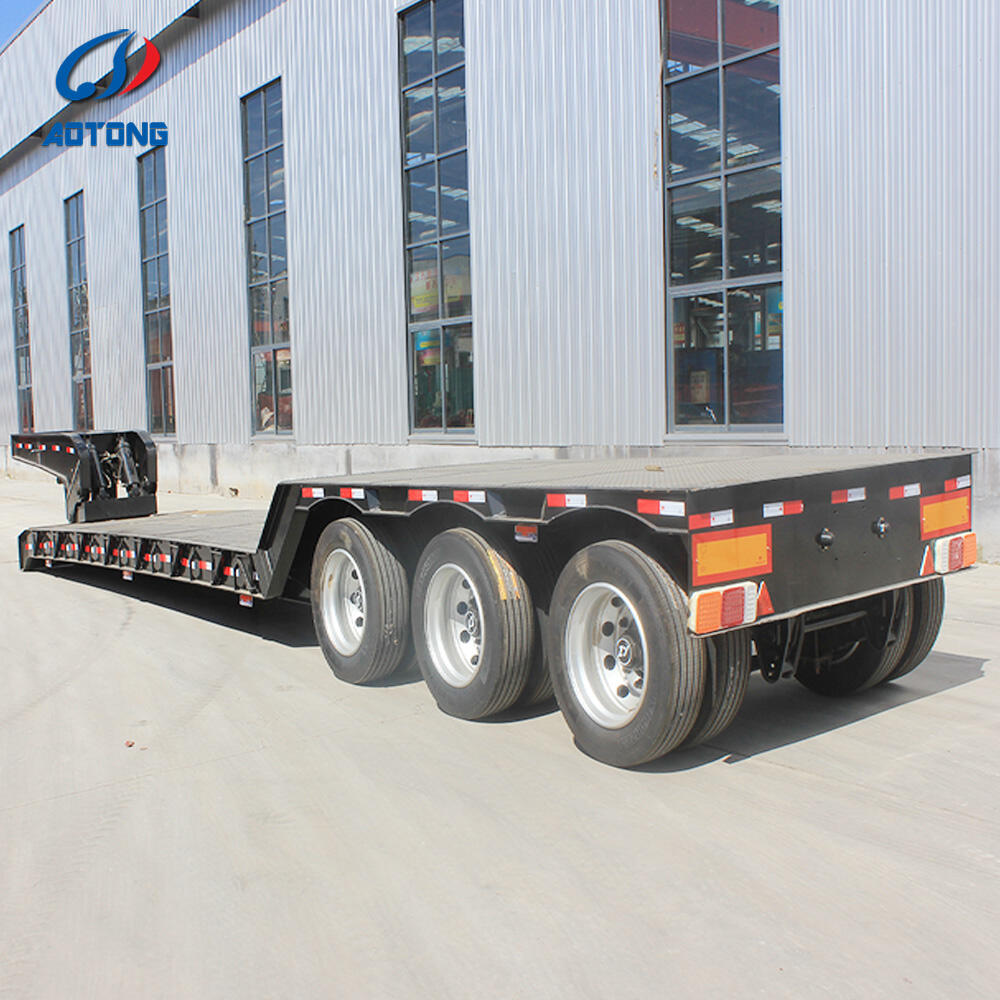

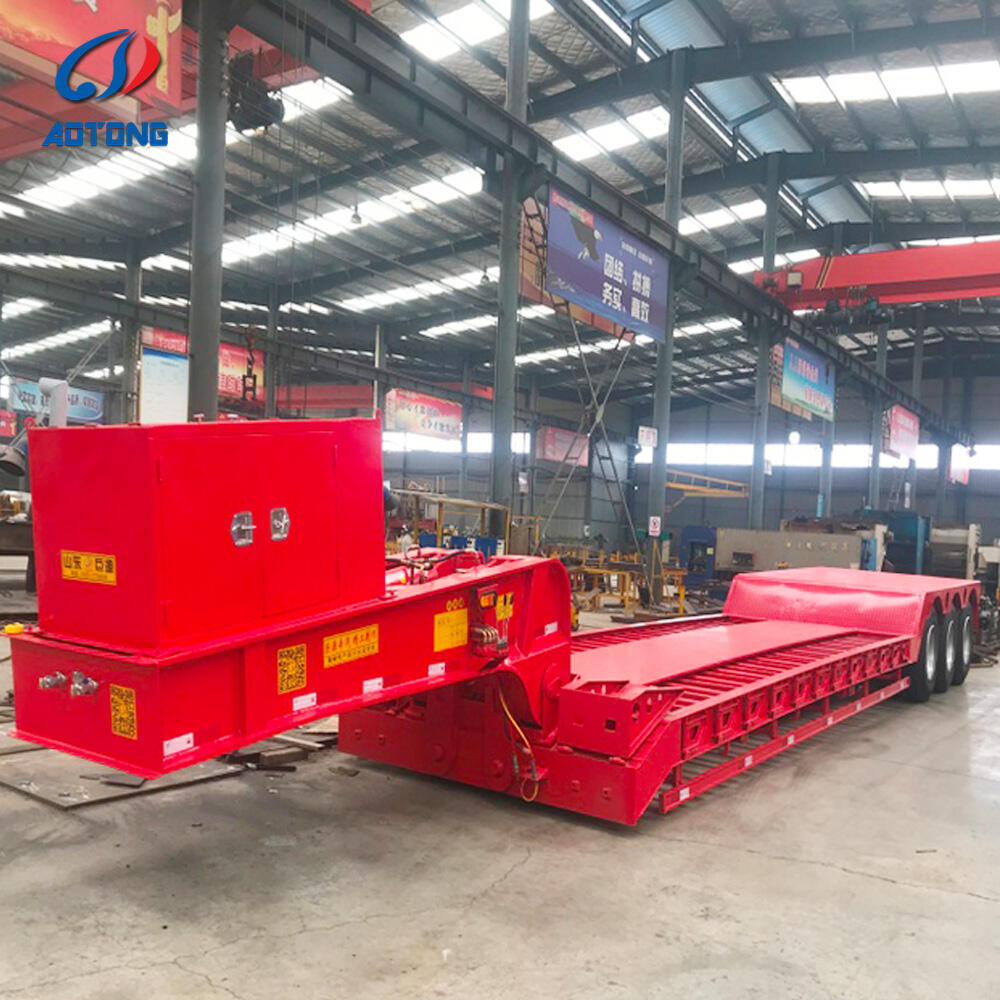

Detachable Gooseneck (4).jpg Detachable Gooseneck (5).jpg

Common Applications

✔ Construction: Bulldozers, cranes, excavators
✔ Energy Sector: Transformers, turbines
✔ Military: Tanks, armored vehicles
✔ Agriculture: Combines, tractors

Advantages

✓ Versatile Loading: No need for cranes (drive-on capability)
✓ Low Deck Height: Better stability for tall loads
✓ Detachable Front: Allows rear/side loading without a fifth wheel obstruction
✓ High Payload: More capacity than standard flatbeds

Specifications and Parameters:

Size	16000(2500-3000)800 (mm)
Payload	40Ton-100Ton
Power pack	Engine for hydraulic cylinders
Main beam	Heavy duty I beam.
Side beam	250mm I beam
Plate	4mm checked plate
Ladder	Small ladder frond loading
Axles	3 * 13ton capacity (Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	12R22.5 / 11.00R20 12pcs (Other size optional)
Rim	9.00-22.5 / 11.00R20 12pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

Frequently Asked Questions (FAQ):

Q: Does your company has your own factory?

A: Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing various trailers in Shan Dong,China.

Q: What is your minimum order quantity?

A: One unit

Q: Can you satisfy my special requirement?

A: Definitely!We can make the trailers based on your requirement.

Q: What logistics methods can you use for transportation?

A: We can use various transportation tools to transport construction machinery.

(1) Our main mode of transportation is that the machine will be shipped by container or ro-ro/bulk.

(2) For China's inland neighboring countries, we can ship the machine by road or rail.

(3) For urgently needed spare parts, we can ship by DHL, TNT, UPS or FEDEX.

Q: Do you have any other services?
A: Our company's aim is to give you satisfaction, our services include the best price, shipping and packaging, booking the cargo hold, and helping you buy parts.
