Lowdeck Semi Trailer

- Main beam: Heavy duty I beam.
- Side beam: 250mm I beam
- Ladder: Mechanical spring ladder or hydraulic ladder
- Suspension: Mechanical suspension (Air suspension optional)
- Leaf spring: 10pcs
- Kin pin: 2''/3.5'' bolt type
- Landing gear: 28 Ton two speed
- Braking system: Double air chamber, brake valve, 45L air tanks; ABS optional
- Electrical: LED light, 7 ways, 24V
- Painting: Blasting and clean rust,1 coat of prime painting, 2 coat of finish painting

Overview
Recommended Products

Lowbed semi trailer is suitable for various kinds of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment and various kinds of steel transportation.

The loading size can be designed according to the customer's requirements in order to meet various special goods transportation.

The frame and platform is low, which guarantees the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.

The loading capacity,overall size and other configurations can all be customized as required.

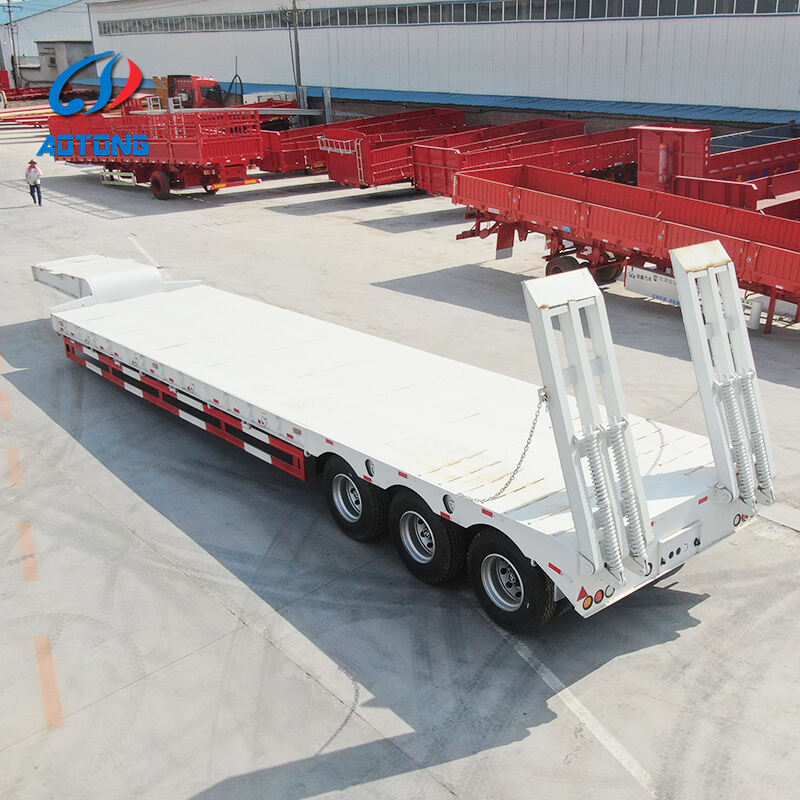

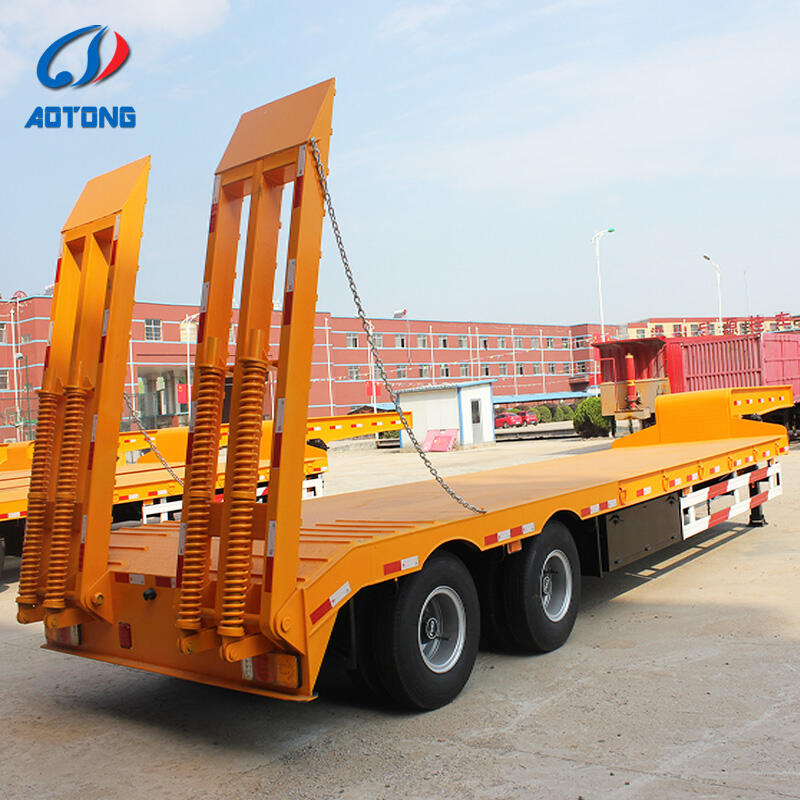

lowbed trailer (3).jpg lowbed trailer (5).jpg

Applications

✔ Construction Equipment: Excavators, bulldozers, cranes

✔ Mining & Oilfield Machinery: Drilling rigs, fracking equipment

✔ Energy Sector: Wind turbine components, transformers

✔ Military & Government: Tanks, missile launchers

✔ Industrial Modules: Prefabricated plant components

lowbed trailer (2).jpg

Advantages

✓ Ultra-Low Deck Height: Avoids height restrictions

✓ Higher Payload Capacity: Built for extreme weights

✓ Versatile Loading: Ramp, detachable gooseneck, or sliding axle options

✓ Stability & Safety: Lower center of gravity reduces tipping risk

Specifications and Parameters:

Size	2 Axles:1250030001100 (mm) 3 Axles:1300030001100 (mm) 4 Axles:1400030001100 (mm)
Payload	2 Axles:40000KG 3 Axles:60000KG 4 Axles:80000KG
Main beam	Heavy duty I beam.
Side beam	250mm I beam
Plate	2 Axles:4mm checked plate 3 Axles:4mm checked plate 4 Axles:5mm checked plate
Ladder	Mechanical spring ladder or hydraulic ladder
Axles	2 Axles:2 * 13ton capacity (Brand optional) 3 Axles:3 * 13ton capacity (Brand optional) 4 Axles:4* 13ton capacity (Brand optional)
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	10pcs
Tire	2 Axles:12R22.5 / 11.00R20 8pcs (Other size optional) 3 Axles:12R22.5 / 11.00R20 12pcs (Other size optional) 4 Axles:12R22.5 / 11.00R20 16pcs (Other size optional)
Rim	2 Axles:9.00-22.5 / 11.00R20 8pcs (Other size optional) 3 Axles:9.00-22.5 / 11.00R20 12pcs (Other size optional) 4 Axles:9.00-22.5 / 11.00R20 16pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical	LED light , 7 ways ,24V
Painting	Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

Frequently Asked Questions (FAQ):

Q: Does your company has your own factory?

A: Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing various trailers in Shan Dong,China.

Q: What is your minimum order quantity?

A: One unit

Q: Can you satisfy my special requirement?

A: Definitely!We can make the trailers based on your requirement.

Q: What logistics methods can you use for transportation?

A: We can use various transportation tools to transport construction machinery.

(1) Our main mode of transportation is that the machine will be shipped by container or ro-ro/bulk.

(2) For China's inland neighboring countries, we can ship the machine by road or rail.

(3) For urgently needed spare parts, we can ship by DHL, TNT, UPS or FEDEX.

Q: Do you have any other services?
A: Our company's aim is to give you satisfaction, our services include the best price, shipping and packaging, booking the cargo hold, and helping you buy parts.
